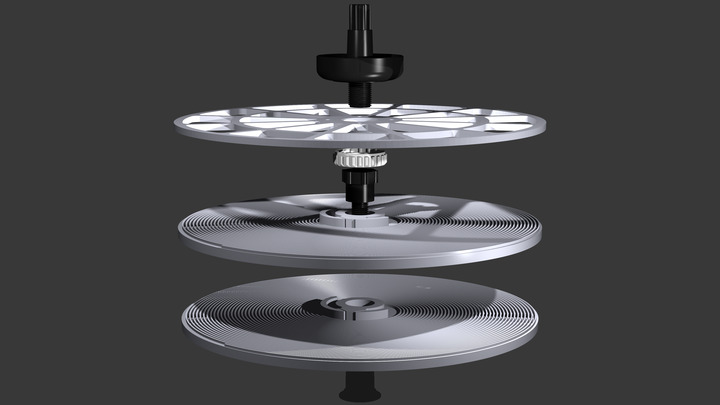

GNAL 50ft V3 all pieces

  1. What's GNAL?
  2. STL Files
  3. Printers
  4. Material
  5. Troubleshooting
  6. Contact

What's GNAL? Gnal's Not A Lomo!

GNAL stands for Gnal's Not A Lomo because it isn't. While inspired by a certain motion picture development tank the goal of this project is to create a free, open-source, modification-friendly processing system for small format movie film with the added constraint that it be 3D printable or otherwise able to be fabricated on a small scale. All source code and STL files for printing will be made available in this repository.

GNAL is built using OpenSCAD: a free, open-source CAD program that uses scripts to generate objects. Building this project in a scripting language serves two purposes: it uses only free and open-source software to generate the GNAL processing spirals and it future-proofs the design by preserving its dimensions in human-readable text format. Even if OpenSCAD were to disappear tomorrow (and we sincerely hope it doesn't) it would still be possible to recreate the GNAL models in another CAD program just by reading the code and reproducing the measurements.

While the files are all free, open-source and readily available to download; actually printing them can be a challenge. Please read through this README for information about materials, printers and troubleshooting your prints. Check out the development notes if you want to modify this project.

Happy processing!

Other Spirals

There has been a lot of development around 3D printed processing spirals and any projects will be linked here. If you find any, please share with the email address at the bottom of this README.

Where's the tank?

Good question!


V3 STL Files

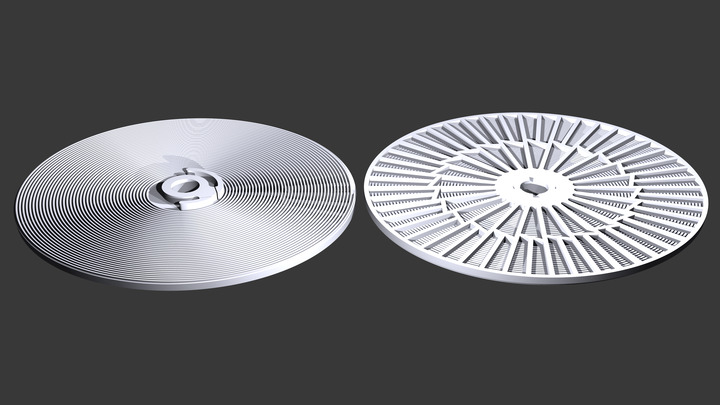

V3 50ft spiral top and bottom

50ft/15m

All 50ft v3 STL files in a .zip

100ft/30m

All 100ft v3 STL files in a .zip

V2 STL Files

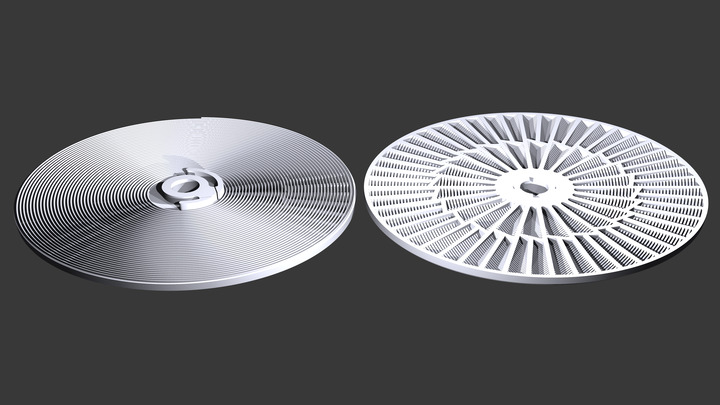

V2 50ft spiral top and bottom

50ft/15m

All 50ft v2 STL files in a .zip

100ft/30m

All 100ft v2 STL files in a .zip

V1 STL Files

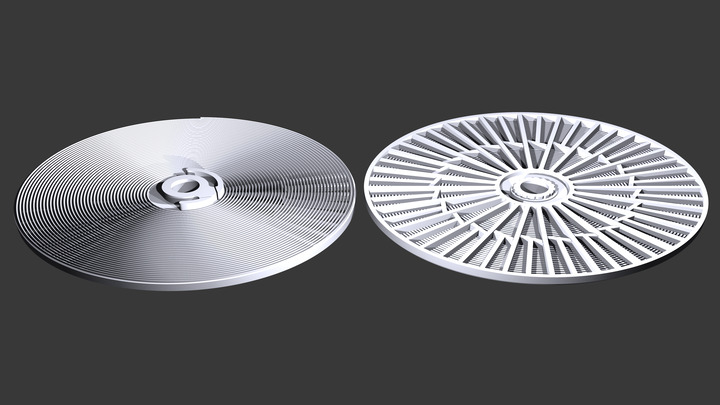

V1 50ft spiral top and bottom

50ft/15m

All 50ft v1 STL files in a .zip

100ft/30m

All 100ft v1 STL files in a .zip


Printers

The diameter of these spiral reels limit the printers that are capable of making this design. The 50ft/15m model is 225.71mm (8.88in) wide at the base and the 100ft/30m model is 299mm (11.77in) wide.

50ft/15m Capable Printers

100ft/30m Capable Printers

There are people printing spirals in sections on smaller printers, but that is not a recommended use of these files as it requires extreme precision to reconstruct the parts into a reel that will load without problems. Another thing to consider is the longevity of the bond made by the adhesive you choose. Don't let that stop you, though. A multi-part printed reel is just not a priority for this particular project. An enterprising spirit might notice the gnal_50ft_spiral_quarter() and gnal_100ft_spiral_quarter() modules in the V3 OpenSCAD scripts and begin to wonder what is possible.


Material

PETG is currently the recommended plastic for printing the GNAL. Since this is a piece of darkroom processing equipment its exposure to water and photochemistry is inevitable and should be considered primarily. PETG (Polyethylene terephthalate glycol) is PET--which is a plastic that's typically encountered in plastic bottles and food containers--in a copolymer with glycol.

Various manufacturers have published safety data sheets for PETG filament. The only warning about reactivity I have discovered states that a condition to avoid is "strong oxidizing agents" which may include reversal bleaches that are comprised of strong acids. This is not a scientific evaluation and may stand to be corrected.

ABS is a viable option but has a greater tendency to warp on larger prints without proper temperature control around the print bed. Since this model needs to be perfectly flat across the bottom of the reel, this is not ideal and will make for a challenging print. ABS is a plastic commonly used in injection molding and is also generally non-reactive with photochemistry.

PLA is not recommended but this doesn't mean you can't get an acceptable result with it. The lack of endorsement comes from mostly anecdotal experience witnessing the wear and tear caused by exposure to water on PLA prints. Biodegradable and porous, PLA will wear down in the weakest parts first and on this model that would be the spiral. If you do not need your processing equipment to last a long time, you may find it acceptable. PLA stands for polylactic acid and is likely the most reactive material to use with photochemistry where it is vital to maintain pH for consistent results.


Troubleshooting

Many, many issues were encountered during the development of this tool. Prints came out warped, failed midway during multi-day prints and had other mysterious ailments. I am by no means an expert but have built up months of experience trying to print these models on a variety of machines.

Warping

Fused filament fabrication relies on the behavior of plastics at high heat to create a physical object. If your prints are warping, there are a few things to look at:

  1. Material
  2. Temperature
  3. Slicer settings

The first thing to consider when your prints are coming out warped off the print bed is whether or not your material is appropriate for this model. Check the material section of this README for more information, but theres a chance if you are using PLA or ABS that large flat prints of this size are warping due to limitations with the material you are using. PETG has proven to warp far less in my own anecdotal experience and is the recommended material for this project.

The thermal properties of the material you're printing with are what causes warping, so check if your printer is being set to the recommended temperatures on both the bed and extruder for the material and printer you are using. Warping occurs consistently when a section of a part cools too quickly and contracts while the rest of it is still being printed. Mitigate this by using an enclosure on your open-frame printer or by printing in a space with low air movement but still with appropriate ventilation for the material you use.

The slicer you use and the settings in its configuration will make a lot of difference in how your print comes out. During the development of this project Cura is the slicer used most for test prints, however you might find that different software works best with your machine. The settings are important to test before you commit to a complete print of the spiral part.

Here is an example of the important settings used during development while printing with PETG.

Setting Value
Extruder Temperature 240o C
Bed Temperature 80o C
Generate Supports Yes
Infill 20%
Print Speed 40 mm/s

This is a fraction of the overall settings that Cura has, but they note some of the key features that were changed from the default profile for PETG and my printer.


To read more about developing and modifying the GNAL, check out the development notes.
