Small Bolex Matte Box

This is a design for a small matte box for Bolex cameras. It's a preliminary attempt at making a simple matte box for holding filters in front of a lens.

Attaching to the hot shoe mount on top of Rex-series Bolexes, this relies on a rectangular brass tube as a rail to hold the matte box. It expects a 3/8" x 3/16" (4.75mm x 9.5mm) profile for this rail. There is also a printed version of the tube included as an 3D-printable STL file.

The hot shoe mount + rail design was also adapted by Lindsay McIntyre to hold an alternate matte box for use with 4x5.5 inch cards.

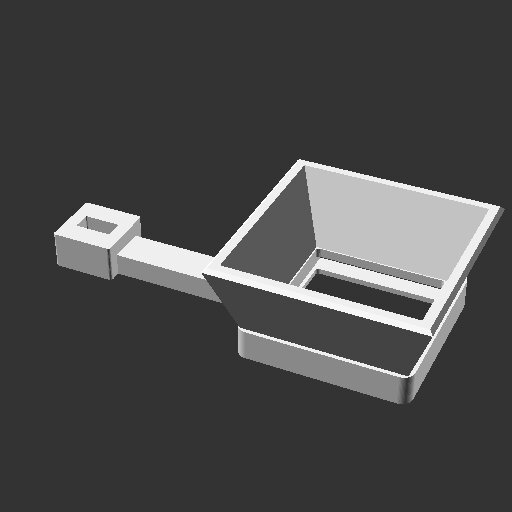

Small Bolex Matte Box

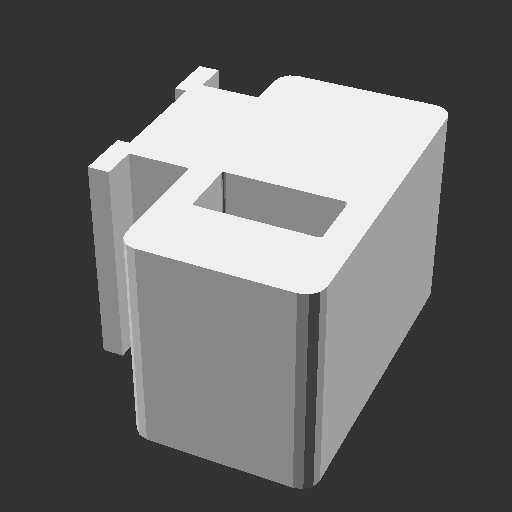

Hot Shoe Mount

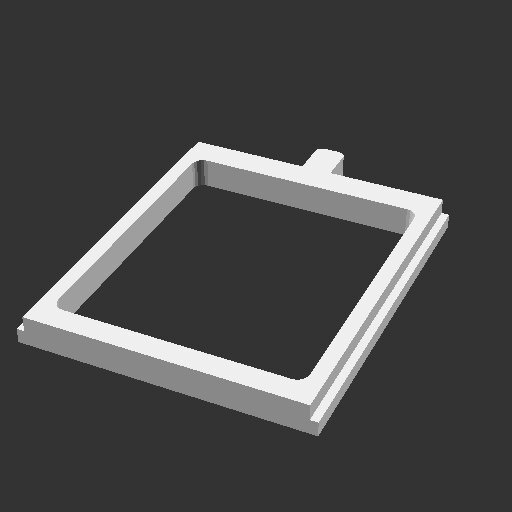

Insert

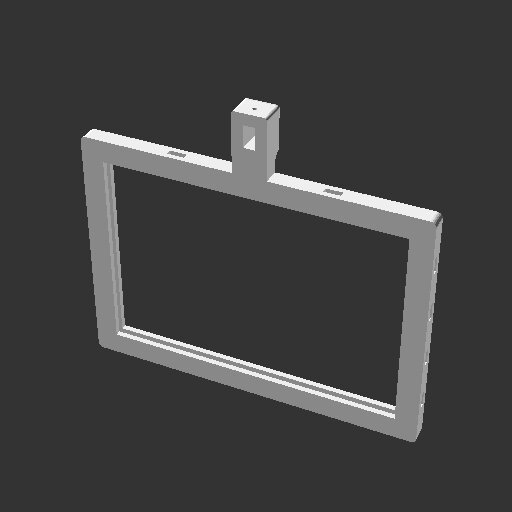

Card Matte Box by Lindsay McIntyre
