Animation Pegbars

The pegbar is a tool for holding punched cels for drawing and shooting. This repo contains scripts for generating pegbars for round pegs (three hole punch) as well as for cels made for ACME, Disney and Oxberry pegs.

There are two variations of this design, for smaller printers, each broken into two or 3 pieces.

Round Pegbars

This design is intended for use with a standard three hole punch.

Download STL

Round Pegbar in Two Pieces

Download STL

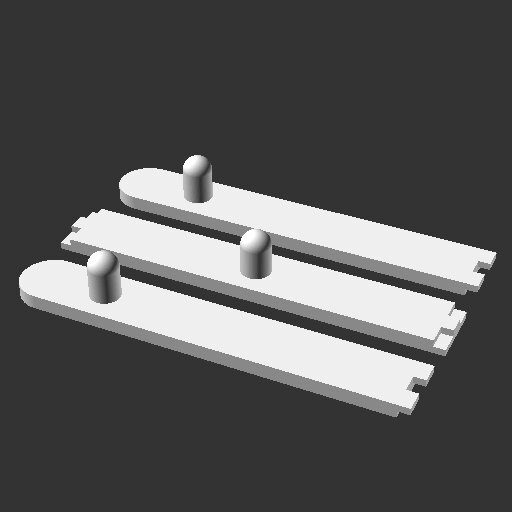

Round Pegbar in Three Pieces

Download STL

ACME Pegbars

This design is distinct from round peg bars due to the enlongated pegs on the ends of it. These enlogated pegs are intended to reduce the shake in the cels when they are drawn on.

Download STL

ACME Pegbar in Two Pieces

Download STL

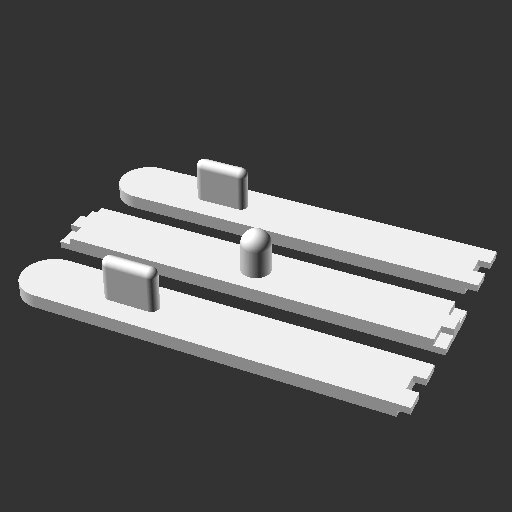

ACME Pegbar in Three Pieces

Download STL

Oxberry Pegbars

This design is used for Oxberry pegs. It is distinct from the ACME design by having thicker outer pegs at a different spacing.

Download STL

Oxberry Pegbar in Two Pieces

Download STL

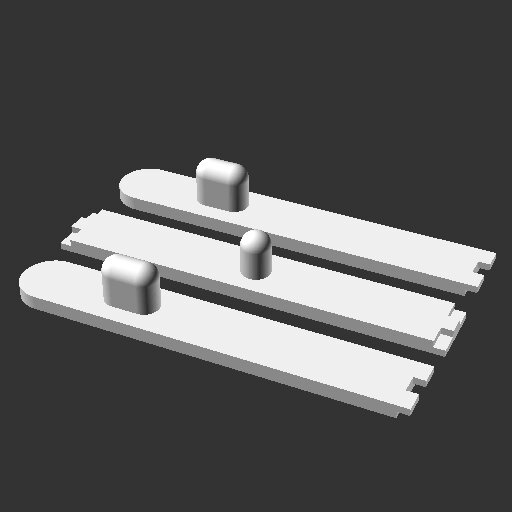

Oxberry Pegbar in Three Pieces

Download STL

Disney Pegbars

This is the design that was used at Disney until they adopted the ACME pegbar standard.

Download STL

Disney Pegbar in Two Pieces

Download STL

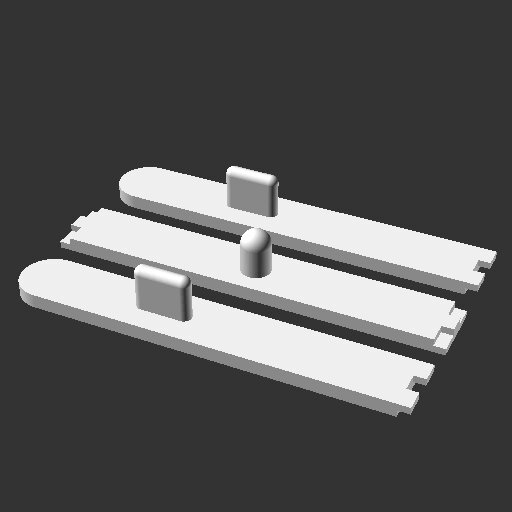

Disney Pegbar in Three Pieces

Download STL
